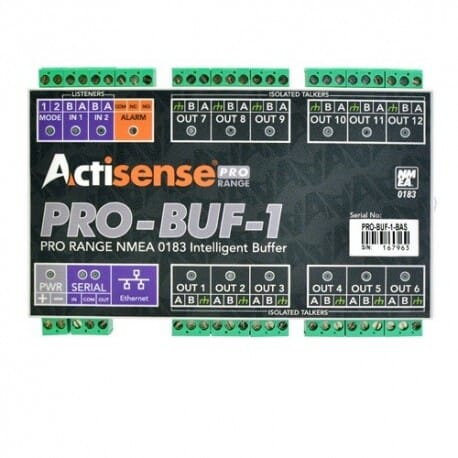

Buffer: 2 OPTO inputs- 12 ISO-Drive outputs- Serial- Eth

Actisense

Varenr.
PRO-BUF-1-BAS-S
Lager
På lager
Pris
kr 8 014,00
"2 OPTO inputs, 12 ISO-Drive outputs, Serial Port, Ethernet port, standard configuration, pluggable screwless terminals "

Egenskaper PRO-BUF-1:

  • 2 x NMEA 0183 OPTO-isolated inputs.
  • 12 x NMEA 0183 ISO-Drive™ isolated outputs.
  • 1 x bi-directional isolated serial port.
  • 1 x Ethernet port
  • 1 x Alarm output (N/O and N/C contacts).
  • Pre-defined modes of operation.
  • ‘User Configuration Mode’
  • Diagnostic LEDs (power, data in/out & alarm)
  • Designed for 12 and 24 Volt supply
  • Pluggable connector system supports both screw and screwless terminals
  • Isolation to battery supply
  • Browser based configuration tool
  • Automatic baud rate matching on inputs
  • Independently configurable outputs
  • ‘Future proof’ easily upgraded firmware
EAN
PRO-BUF-1-BAS-S

Dokumenter
