Frequency min. Range2 2.7GHz
Intermod. Static 2x20W -155dBc
VSWR Range 2 1.08
Return Loss Range2 28dB
Hightlight3 Water protection according to IP 68
External Remarks Suitable for cables with copper and aluminium outer conductor
Highlight2 For outdoor applications
Cable Entry Centre Contact plugged
Cable Entry Outer Contact clamped
Class 1037
Body Material Brass
Frequency max. Range2 3.7GHz
Body Plating SUCOPLATE (R) Plating
Cable Group Connectors M12
Cable1 SUCOFEED_1/2
Cable2 SUCOFEED_1/2_LW
Cable3 SUCOFEED_1/2_FR
Cable5 CELLFLEX LCF12-50JFN, HELIAX LDF4-50A, NK OHMAX RFA 1/2-50
Centre Contact Material Bronze
Centre Contact Plating Silver Plating

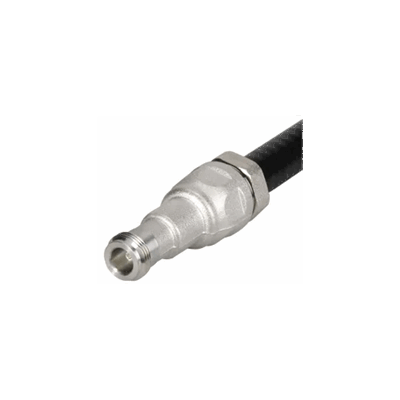

Connector Description Straight cable plug
CONNECTOR SERIES false
Coupling Nut Material Brass
Coupling Nut Plating SUCOPLATE (R) Plating
Dielectric Size 12mm
Frequency max. Range1 2.7GHz
Frequency min. Range1 0GHz
Gasket Material NR (Natural Rubber)
Gender plug
Highlight1 SMART QUICK-FIT connector
ID 21_N-50-12-50/033_-
Impedance 50
Insulator Material PFA / PTFE
Interface Frequency max. 7.5GHz
Interface Standards IEC 61169-4_CECC 22190_DIN 47223_VG 95250
Junction cable
2011/65/EC (RoHS) compliant
Mounting none
Number of Matings 500
Operating Temperature max. 85°C
Operating Temperature min. -40°C
Outer Contact Material Brass
Outer Contact Plating SUCOPLATE (R) Plating
Packaging Single
PATTERN CLASSES 21
Return Loss Range1 30dB
Weight 0.092kg
CONNECTOR SHAPE straight
Type Number 21_N-50-12-50/033_-E
VSWR Range 1 1.065
OBJECT_ID 8552067
