Denne kraftige LTE Cat 6 industrielle 4G LTE-ruteren er designet for profesjonelle applikasjoner som krever pålitelig, rask tilkobling og høy datagjennomstrømning. Den er utstyrt med fire Gigabit Ethernet-porter, AC Wi-Fi, Bluetooth LE, og kommer med fjernadministrasjonsmuligheter fra RMS (sky-administrering).

• 4G (LTE) Høye hastigheter på opptil 300 Mb/s (Cat. 6)
• GPS og Bluetooth LE
• Ac-wifi (867 Mb/s) og gigabitswitch

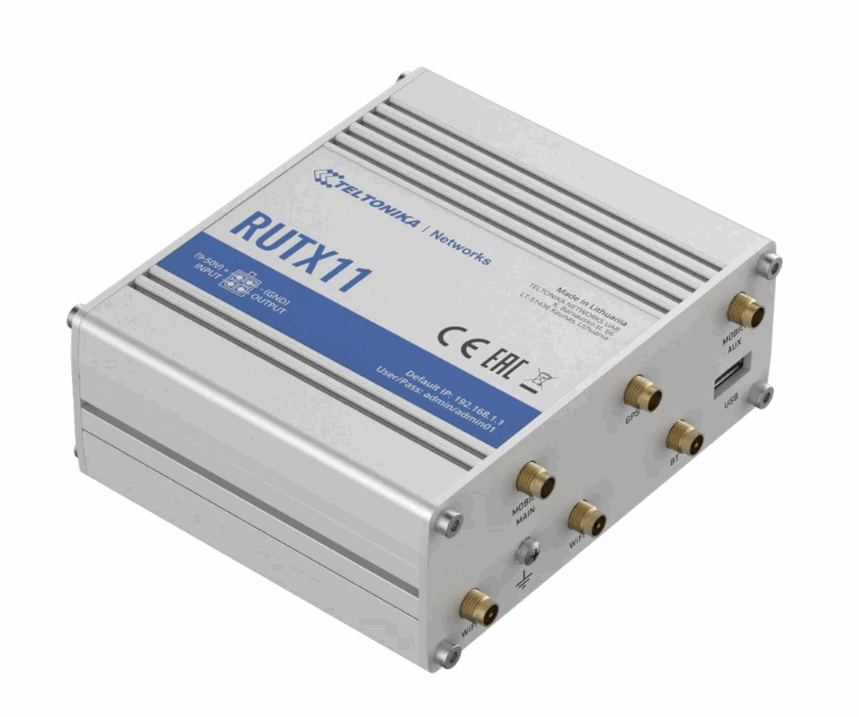

Teltonika RUTX11 er en kraftig og profesjonell 4G-ruter med innebygd modem for to SIM-kort. Ruteren er utstyrt med GPS (GNSS), ac-wifi (867 Mb/s), fire nettverksporter (den ene kan brukes som WAN for fast internett) og har funksjoner som VPN, WAN-/4G-failover og innebygd brannmur. Er også utstyrt med BLE. Velegnet for IoT og bruk som krever høy ytelse, sikkerhet og avanserte funksjoner. Kan også spenningsmates via passiv PoE.

Teknisk spesifikasjon:

MOBIL:

• Mobile module: 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
• SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
• Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, Carrier aggregation
• SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
• USSD: Supports sending and reading Unstructured Supplementary Service Data messages
• Black/White list: Operator black/white list
• Multiple PDN: Possibility to use different PDNs for multiple network access and services
• Band management: Band lock, Used band status display
• APN: Auto APN
• Bridge: Direct connection (bridge) between mobile ISP and device on LAN
• Passthrough: Router assigns its mobile WAN IP address to another device on LAN

WIRELESS:

• Wireless mode: 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
• Wi-Fi security: WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
• SSID/ESSID: ESSID stealth mode
• Wi-Fi users: up to 150 simultaneous connections
• Wireless Hotspot: Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes
• Wireless Connectivity Features: Wireless mesh (802.11s), fast roaming (802.11r), Relayd
• Wireless MAC filter: Whitelist, blacklist

BLUETOOTH:

• Bluetooth 4.0: Bluetooth low energy (LE) for short range communication

ETHERNET:

• WAN: 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
• LAN: 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

NETWORK:

• Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
• VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Firewall: Port forward, traffic rules, custom rules
• DHCP: Static and dynamic IP allocation, DHCP Relay
• QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
• DDNS: Supported >25 service providers, others can be configured manually
• Network backup: Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
• Load balancing: Balance Internet traffic over multiple WAN connections
• SSHFS: Possibility to mount remote file system via SSH protocol

SECURITY:

• Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
• Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN: Port and tag-based VLAN separation
• Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN:

• OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods
• OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
• IPsec: IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
• GRE: GRE tunnel, GRE tunnel over IPsec support
• PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
• Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
• DMVPN: Method of building scalable IPsec VPNs
• SSTP: SSTP client instance support
• ZeroTier: ZeroTier VPN client support
• WireGuard: WireGuard VPN client and server support
• Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support

MODBUS TCP SLAVE:

• ID range: Respond to one ID in range [1;255] or any
• Allow Remote Access: Allow access through WAN
• Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality

MODBUS TCP MASTER:

• Supported functions: 01, 02, 03, 04, 05, 06, 15, 16
• Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

DATA TO SERVER:

• Protocol: HTTP(S), MQTT, Azure MQTT, Kinesis

MQTT GATEWAY:

• MQTT Gateway: Allows sending commands and receiving data from MODBUS Master through MQTT broker

DNP3:

• Supported modes: TCP Master, DNP3 Outstation

MONITORING & MANAGEMENT:

• WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
• FOTA: Firmware update from server, automatic notification
• SSH: SSH (v1, v2)
• SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET
• Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
• TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
• MQTT: MQTT Broker, MQTT publisher
• SNMP: SNMP (v1, v2, v3), SNMP Trap
• JSON-RPC: Management API over HTTP/HTTPS
• MODBUS: MODBUS TCP status/control
• RMS: Teltonika Remote Management System (RMS)

IOT PLATFORMS:

• Cloud of Things: Allows monitoring of: Device data, Mobile data, Network info, Availability
• ThingWorx: Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
• Cumulocity: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
• Azure IoT Hub: Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

SYSTEM CHARACTERISTICS:

• CPU: Quad-core ARM Cortex A7, 717 MHz
• RAM: 256 MB, DDR3
• FLASH storage 256 MB, SPI Flash FIRMWARE / CONFIGURATION WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup FOTA Update FW RMS Update FW/configuration for multiple devices at once Keep settings Update FW without losing current configuration FIRMWARE CUSTOMIZATION Operating system RutOS (OpenWrt based Linux OS) Supported languages Busybox shell, Lua, C, C++ Development tools SDK package with build environment provided LOCATION TRACKING GNSS GPS, GLONASS, BeiDou, Galileo and QZSS Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS NMEA NMEA 0183 NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol) Server software Supported server software TAVL, RMS Geofencing Configurable multiple geofence zones USB Data rate USB 2.0 Applications Samba share, USB-to-serial External devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter Storage formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 INPUT / OUTPUT Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA Events Email, RMS, SMS I/O juggler Allows to set certain I/O conditions to initiate event POWER Connector 4-pin industrial DC power socket Input voltage range 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection PoE (passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC Power consumption 16 W Max PHYSICAL INTERFACES Ethernet 4 x RJ45 ports, 10/100/1000 Mbps I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector Status LEDs 4 x WAN type LEDs, 2 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 1 x Power, 2 x 2.4G and 5G Wi-Fi SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders Power 1 x 4-pin power connector Antennas 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNSS USB 1 x USB A port for external devices Reset Reboot/User default reset/Factory reset button Other 1 x Grounding screw PHYSICAL SPECIFICATION Casing material Aluminum housing Dimensions (W x H x D) 115 x 44.2 x 95.1 mm Weight 456 g Mounting options DIN rail, flat surface placement OPERATING ENVIRONMENT Operating temperature -40 °C to 75 °C Operating humidity 10% to 90% non-condensing Ingress Protection Rating IP30 REGULATORY & TYPE APPROVALS Regulatory CE/RED, RoHS, REACH Vehicle ECE R10 (E-mark) EMC EMISSIONS & IMMUNITY Standards EN 55032:2015, EN 55035:2017, Draft ETSI EN 301 489-1 V2.2.1, ETSI EN 301 489-3 V2.1.1, Draft ETSI EN 301 489-17 V3.2.0 ESD EN 61000-4-2:2009 RS EN 61000-4-3:2006 + A1:2008 + A2:2010 EFT EN 61000-4-4:2012 Surge protection EN 61000-4-5:2014 CS EN 61000-4-6:2014 DIP EN 61000-4-11:2004 RF Standards ETSI EN 300 328 V2.1.1, ETSI EN 301 893 V2.1.1, ETSI EN 300 440 V2.1.1 SAFETY Standards IEC 62368-1:2014 (Second Edition) EN 62368-1:2014+A11:2017 EN 50385:2017 EN 62232:2017
