Dette er en kraftpakke i lite format. Den gjør så mye mer enn bare å gi deg mobilt bredbånd på enten trådløse (WiFi) enheter eller trådbundne (LAN) enheter.

Om man tenker å benytte denne i båt, kan den blandt annet sende GPS informasjon til kartplottere over nettverket (både wifi og lan), fint på lystbåter som ikke har krav til GPS og kan fungere som en GPS nødkilde om din primære GPS skulle slutte å fungere. Se den massive listen over integrert funksjonalitet i denne lille pakken.

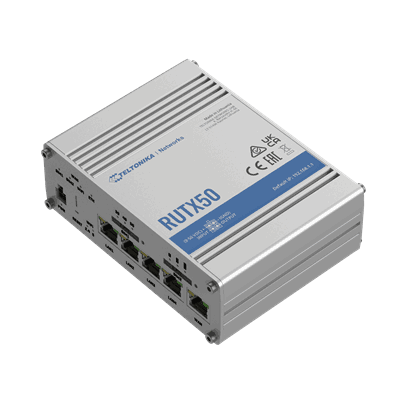

• RUTX50 er en fremtidssikker, multi-nettverks industriell ruter som tilbyr 5G mobilkommunikasjon for høyhastighets og datatunge applikasjoner.
• 5G dual SIM mobilkommunikasjon kombinert med 5 Gigabit Ethernet-porter og dual-band Wi-Fi muliggjør pålitelig dataoverføring med ultralav ventetid.
• Kraften til 5G-teknologi, kombinert med et bredt spekter av grensesnitt og industrielle maskinvarefunksjoner, sikrer tilpasning for fremtidige oppgraderinger og utvidelser.
• RUTX50 kommer med RutOS, som gir avanserte sikkerhetsfunksjoner og spesialiserte industrielle protokoller for et bredt spekter av profesjonelle applikasjonsscenarier, og er kompatibel med vårt Remote Management System (RMS), for optimert fjernadministrasjon og overvåkingsmuligheter for store flåter av enheter.

Spesifikasjoner

Mobil

• Mobil module: 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE CAT20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps ULMobile module 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE CAT20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
• Status: Signal styrke (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/mottatt, tilkoblet bånd, IMSI, ICCID.
• SMS/Call SMS status, SMS konfigurasjon, sende/lese SMS via HTTP POST/GET, EMAIL til SMS, SMS til EMAIL, SMS til HTTP, SMS til SMS, planlagt SMS, SMS autosvar, ringeverktøy
• USSD Støtter sending og lesing av Unstructured Supplementary Service Data meldinger
• Black/White list Operatør sort/hvit liste
• Band management Bånd lås, Visning av bånd status
• APN Auto APN
• Bridge mode Direkte tilkobling (bro modus) mellom mobil tilbyder og enheter på LAN
• Passthrough Gatewayen tildeler dens mobile WAN IP adresse til andre enheter på LAN
• Multiple PDN Kan bruke forskjellige PDN'er for tilgang til flere simultane nettverk og tjenester
• WIRELESS Trådløs modus 802.11b/g/n/ac Wave 2 (WiFi 5) med overførings hastigheter opp til 867 Mbps (Dual Band, MU-MIMO), 802.11r rask overgang, Tilgangs punkt (AP), Stasjon (STA)
• WiFi security WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher moduser, klient separasjon
• ESSID ESSID stealth modus
• WiFi users Opp til 150 samtidige tilkoblinger
• Wireless Hotspot Captive portal (Hotspot), intern/ekstern Radius server, innebygget konfigurerbar landings side
• Wireless mesh/roaming Trådløs mesh (802.11s), rask roaming (802.11r)

Ethernet

• ETHERNET WAN 1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
• LAN 4 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

NETWORK

• Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)
• Routing Statisk routing, Dynamisk routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
• Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP og ICMP for link inspeksjon
• Firewall Port forwarding, trafikkregler, egendefinerte regler, DHCP Statisk og dynamisk IP tildeling, DDNS støtte >25 service tilbydere, andre kan spesifiseres manuelt, SSHFS kan montere remote fil system via SSH protocol, SECURITY Authentication Pre-shared key, digitale sertifikater, X.509 sertifikater Firewall Pre-konfigurerte brannmur regler kan aktiveres via WebUI, ubegrenset brannmur konfigurasjon via CLI; NAT; NAT-T
• Attack prevention DDOS forebygging (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN Port and tag-based
• VLAN separation Mobile quota control Set up custom data limits for SIM card WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

• OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
• OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
• GRE tunnel GRE Tunnel
• IPsec IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
• SSTP SSTP client instance support
• STUNNEL Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
• DMVPN Method of building scalable IPsec VPNs
• PPTP, L2TP Client/Server services can run simultaneously, L2TPv3 support
• WireGuard WireGuard VPN client and server support
• ZeroTier ZeroTier VPN

MODBUS TCP SLAVE

• ID filtering Respond to one ID in range [1;255] or any
• Allow remote access Allow access through WAN
• Custom registers MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality

MODBUS TCP MASTER

• Supported functions 01, 02, 03, 04, 05, 06, 15, 16
• Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

MQTT GATEWAY

• Gateway Allows sending commands and receiving data from MODBUS Master through the MQTT broker

DNP3

• Supported modes TCP Master, DNP3 Outstation

DATA TO SERVER

• Protocols HTTP(S), MQTT, Azure MQTT, Kinesis

IoT PLATFORMS

• Clouds of things Allows monitoring of: Device data, Mobile data, Network info, Availability
• ThingWorx Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
• Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
• Azure IoT Hub Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server

MONITORING & MANAGEMENT

• WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
• FOTA Firmware update from server, automatic notification
• SSH SSH (v1, v2)
• SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
• CALL Reboot, Status, Mobile data on/off, Output on/off
• TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
• MQTT MQTT Broker, MQTT publisher
• SNMP SNMP (v1, v2, v3), SNMP trap
• JSON-RPC Management API over HTTP/HTTPS
• MODBUS MODBUS TCP status/control
• RMS Teltonika Remote Management System (RMS)

SYSTEM CHARACTERISTICS

• CPU Quad-core ARM Cortex A7, 717 MHz
• RAM 256 MB (100 MB available for userspace)
• FLASH storage 256 MB (80 MB available for userspace)

FIRMWARE / CONFIGURATION

• WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
• FOTA Update FW
• RMS Update FW/configuration for multiple devices at once
• Keep settings Update FW without losing current configuration

FIRMWARE CUSTOMIZATION

• Operating system RutOS (OpenWrt based Linux OS)
• Supported languages Busybox shell, Lua, C, C++
• Development tools SDK package with build environment provided

LOCATION TRACKING

• GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
• Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
• NMEA NMEA 0183
• Server software Supports server software: TAVL, RMS
• Geofencing Multiple configurable geofence zones
• USB Data rate USB 2.0
• Applications Samba share, USB-to-serial, Modbus gateway
• External devices Possibility to connect external HDD, flash drive, additional modem, printer
• Storage formats FAT, FAT32, NTFS

INPUT/OUTPUT

• Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
• Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
• Events SMS, Email, RMS
• I/O juggler Allows setting certain I/O conditions to initiate event

POWER

• Connector 4-pin industrial DC power socket
• Input voltage range 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max PoE (passive) Mode B, LAN1 Port, 9 - 50 VDC
• Power consumption Idle: <4 W, Max: <18 W

PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)

• Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
• I/Os 1 x Digital Input, 1 x Digital Output on 4-pin power connector
• Status LEDs 3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2 x 2.4G and 5G WiFi LEDs
• SIM 2 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
• Power 1 x 4-pin DC power connector
• Antennas 4 x SMA for Mobile, 2 x RP-SMA for WiFi, 1 x SMA for GNSS
• USB 1 x USB A port for external devices
• Reset Reboot/User default reset/Factory reset button
• Other 1 x Grounding screw

PHYSICAL SPECIFICATION

• Casing material Aluminum housing
• Dimensions (W x H x D) 132 x 44.2 x 95.1 mm
• Weight 533 g
• Mounting options DIN rail (can be mounted on two sides), flat surface placement

OPERATING ENVIRONMENT

• Operating temperature -40 °C to 75 °C
• Operating humidity 10 % to 90 % non-condensing
• Ingress Protection Rating IP30

I esken

• Teltonika RUTX50
• 4 x 4G/5G SMA antenner (for montering direkte på routeren)
• 2 x WiFi antenner med SMA kontakt og kabel (for montering litt bort fra routeren, dette gir bedre resultat)
• 1 x GPS antenne med SMA kontakt og kabel (må monteres slik at den kan motta GPS signaler. Er ikke nødt til å benyttes)
• 230V AC omformer

• Om du skal ha utvendige antenner, da vil du trenge 4 utvendige antenner (best) eller 2 stk. 2 x 2-mimo antenner (bedre) eller 1 stk. 1 x 4-mimo antenne (bra)
