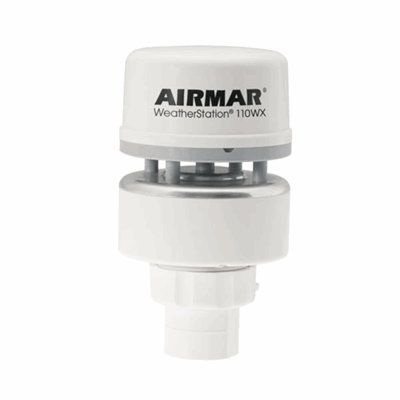

110WX gir avlesninger for vind, lufttemperatur og barometertrykk. Funksjonsrik og innkapslet i et slitesterkt, robust hus som er IPX6-klassifisert, er 110WX den rette komponenten for maritim, effektivt landbruk og husdyrforvaltning. Pålitelighet og ytelse, sammen med at det ikke er noen bevegelige deler, gjør 110WX til et problemfritt og rimelig valg.

Egenskaper

• Ultrasonisk måling av vindhastighet og retning
• Barometertrykk
• Luft temperatur
• Vindkjøling
• Huset er IPX6 klassifisert for vanntetthet
• Data ut via enkel kabel (leveres i forskjellige lengder):
• NMEA2000 protokoll over CAN-bus
• NMEA0183/ASCII serielldata over RS232
• Leveres uten kabel - Se tilleggsprodukter

Tilleggsutstyr

• Relativ fuktighets modul
• Gir dugg-punkt og varmeindeks utregning
• Kan monteres/byttes i felten
• Værstasjonen blir degradert til IPX4 vanntett kapsling ved montering av denne modulen

Spesifikasjoner (Engelsk)

• Air Temp Accuracy: ±0.3°C at 20°C
• Air Temp Range: -40 to 80°C (-40 to 176°F)
• Air Temp Resolution: 0.1°C
• Barometric Pressure Accuracy: ±0.5 hPa at 25°C (or better)
• Barometric Pressure Range: 300 to 1100 hPa
• Barometric Pressure Resolution: 0.1 hPa
• Certs And Standards: CE, IPX6 (IPX4 with optional Relative Humidity sensor), RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN14982
• Comm Method: NMEA2000®
• Communications Available Hardware Interface: Serial RS-232, Serial RS-422, CAN
• Communications Available Protocol: Comma delimited ASCII, NMEA 0183, NMEA 2000
• Communications Serial Output Rate: 1 Hz typical. User selectable. 10 Hz maximum recommended
• Country of Origin: USA
• Data-output Protocol: NMEA 2000® - NMEA 0183 - RS422
• Display Connector: Cable Required
• Exterior Color: White Exterior
• Color: White
• Model or Series: 110WX
• Mounting Thread: Standard 1”-14 UNS (3/4” NPT optional)
• NMEA2000 LEN: 2, 1
• Note: Cables sold separately
• Operating Temp Range: -25 to 55°C (-13 to 131°F)
• Optional RH Accuracy: ±5% RH at 0 to 90% RH at 20°C
• Optional RH Range: 0 to 100% RH
• Optional RH Resolution: 0.1% RH
• Power Supply Current: <50mA (<0.6 W) at 12 VDC
• Power Supply Voltage: 9 to 40 VDC
• Product Type: Sensor
• Protocol: NMEA 0183, NMEA 2000®, RS422
• Recommend Use: Land Based, Stationary
• RoHS Compliant: Yes
• Sensor Connector: 10WS
• True Wind Speed and Direction: Yes (Manual Alignment to North)
• Waterproof Rating: IPX6, IPX6 (Relative Humidity/IPX4)
• Weight: 275 g (0.6 lb.)
• Wind Direction Accuracy: ±3° at 10 m/s
• Wind Direction Range: 0° to 359.9°
• Wind Direction Resolution: 0.1°
• Wind Speed Accuracy: 5% at 10 m/s at 4 angles
• Wind Speed Calculations: User configurable damping
• Wind Speed Range: 0 to 40 m/s (0 to 89 MPH)
• Wind Speed Resolution: 0.1 m/s
• Humidity: Optional
• Refurbished: No

Data ut

• NMEA0183:


  NMEA 0183 Sentence Structure – Comma Delimited ASCII Format
  $GPDTM	GPS Datum Reference
  $GPGGA	GPS Fix Data
  $GPGLL	Geographic Position—Latitude and Longitude
  $GPGSA	GNSS DOP and Active Satellite
  $GPGSV	Satellites in View
  $GPRMC	Recommended Minimum GNSS
  $GPVTG	COG and SOG
  $GPZDA	Time and Date
  $TIROT	Rate of Turn
  $WIMDA	Meteorological Composite
  $WIMWD	Wind Direction and Speed
  $WIMWV	Wind Speed and Angle
  $WIMWR	Relative Wind Direction and Speed
  $WIMWT	Theoretical Wind Direction and Speed
  $YXXDR	Transducer Measurements

• NMEA2000:


  NMEA 2000® Output Message Structure
  59392	ISO Acknowledgement
  060928	ISO Address Claim
  126208	Acknowledge Group Function
  126464	PGN List
  126992	System Time
  126996	Product Information
  126998	Configuration Information
  127257	Attitude
  127258	Magnetic Variation
  129025	Position and Rapid Update
  129026	COG and SOG, Rapid Update
  129029	GNSS Position Data
  129033	Time and Date
  129044	Datum
  129538	GNSS Control Status
  129539	GNSS DOPs
  129540	GNSS Sats in View
  130306	Wind Data
  130310	Environmental Parameters
  130311	Environmental Parameters
  130312	Temperature
  130313	Humidity
  130314	Actual Pressure
  130323	Meteorological Station Data
