Nøkkeldata
Dimmable 10~350 nits

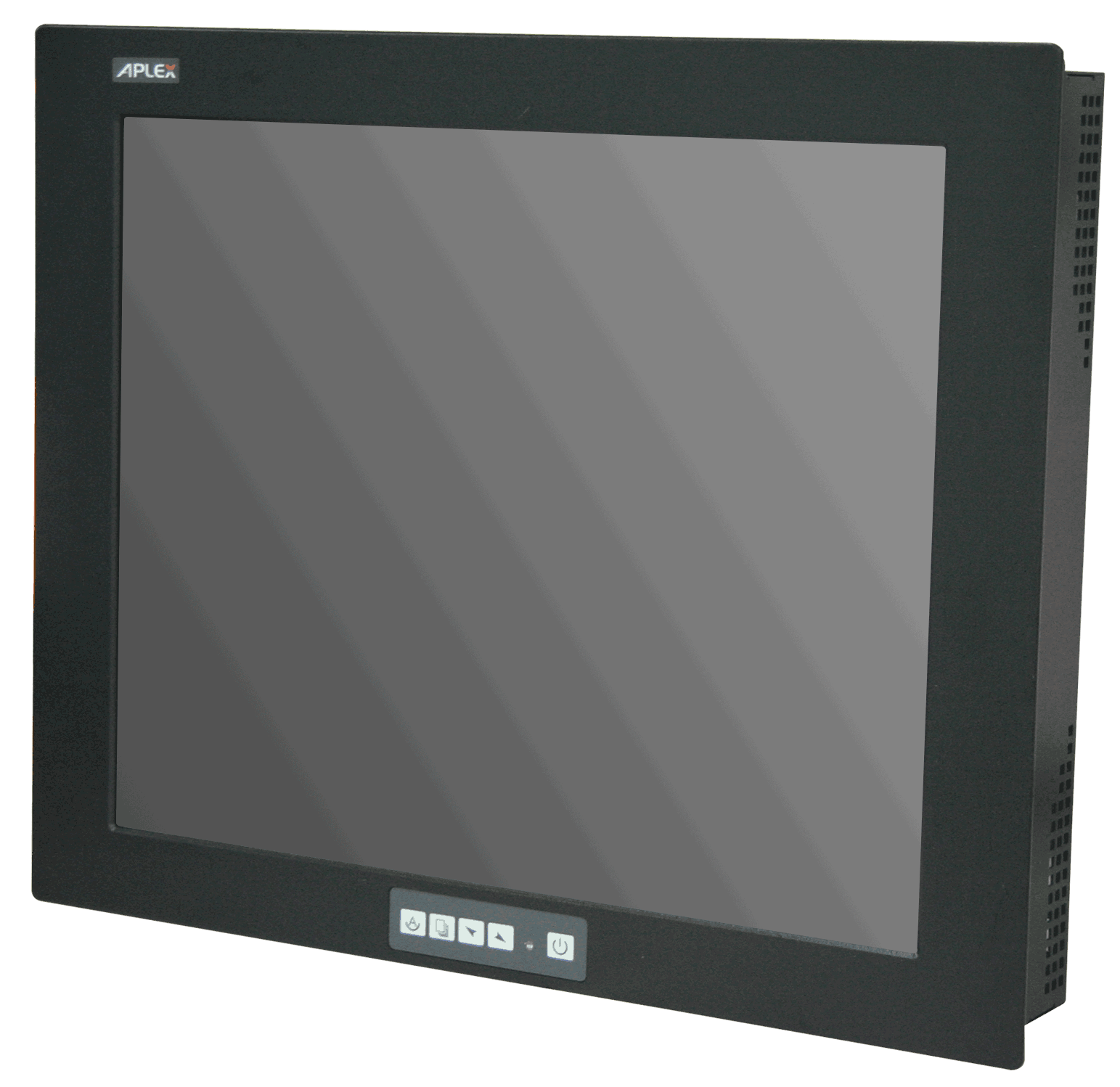

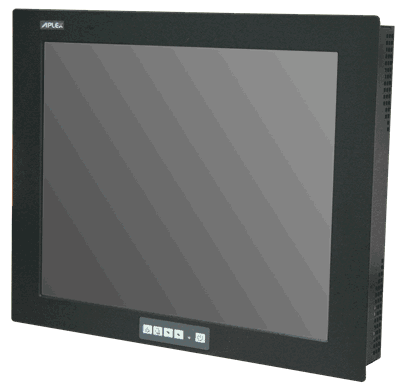

- 19" TFT LCD. Front bezel IP65 Rating (not stainless steel)
- Aplex standard type black chassis display
- Support panel & VESA mount dual type
- Easy to use function key
- DC power 11~32V DC power selection (220VAC power included)
Spesifikasjoner

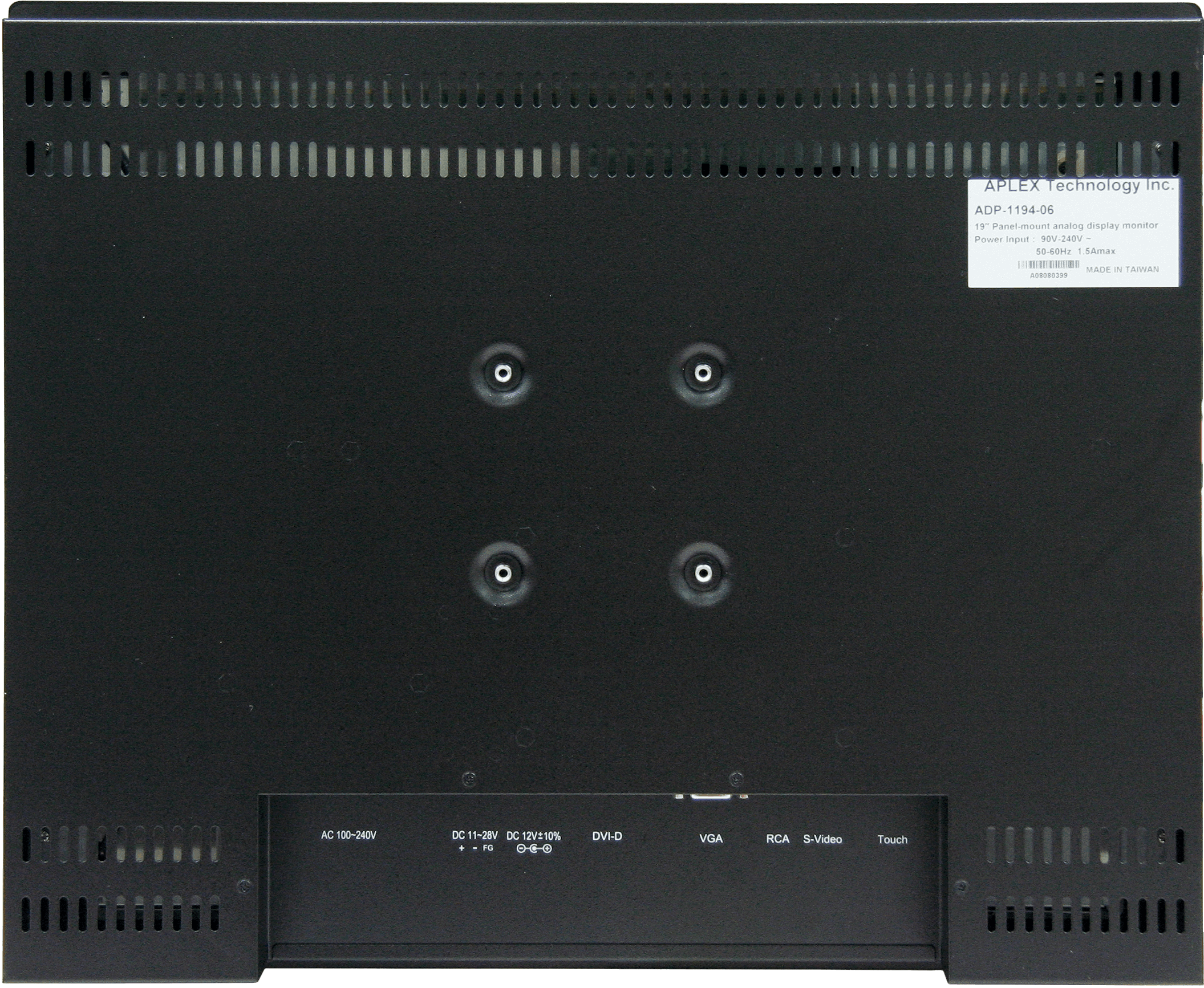

IO Port
- VGA 1
- DVI 1
- CV
- S_Video
- OSD Control Membrane 5 keys at front
- Others RS-232 or USB interface for optioanl touch
- Power AC Inlet / 3 pins terminal block connector for option
Display
- LCD Size 19" TFT-LCD
- Max. resolution 1280 x 1024
- Max. color 16.7M
- Luminance(cd/m²) 300
- Viewangle(H°/V°) 160/160
- Contrast 1000:1
- Backlight lifetime(hrs) 20000
Power
- Power input DC input : 11~32V DC / Max:17W@12V
- Mechanical Construction Steel
- IP rating Front IP65
- Mounting Panel mounting, VESA 75 x 75
- Dimension(mm) 467 x 379 x 68
- Net weight(Kgs) 7.6
Enviroment
- Operating temperature(°C) 0~50
- Storage temperature(°C) -20~60
- Storage humidity 10 to 90% @ 40°C, non- condensing
- Certification CE/FCC class A
OBS! Skjermen har ikke rustfri ramme og egner seg ikke til utvendig bruk eller i vått miljø.
