JRC JLR-41 GNSS kompass

kr 58 625,00

1stk.

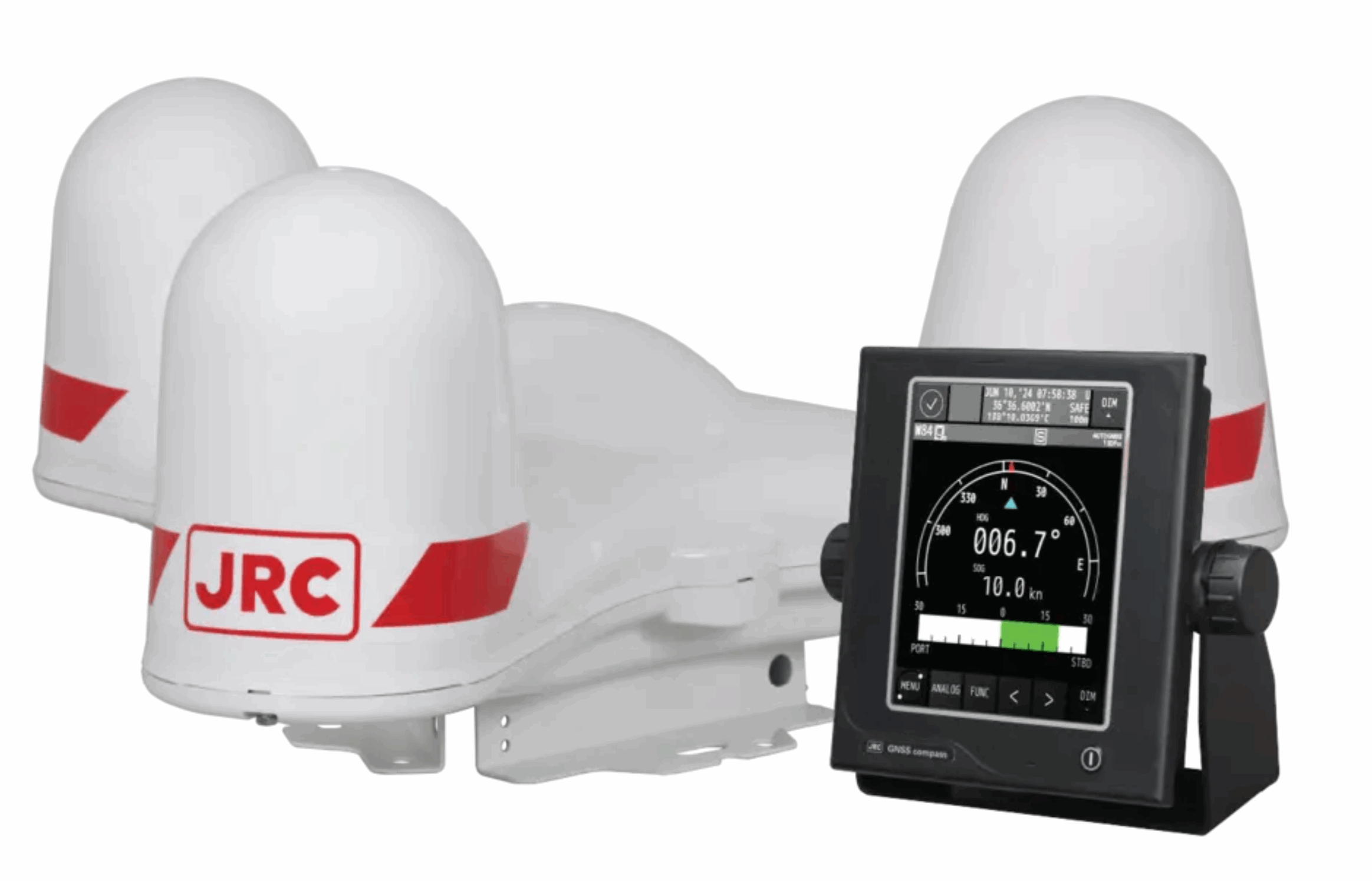

JRC JLR-41 er et profesjonelt multi-GNSS kompass med svært høy nøyaktighet. IMO-godkjent som både GNSS & THD!

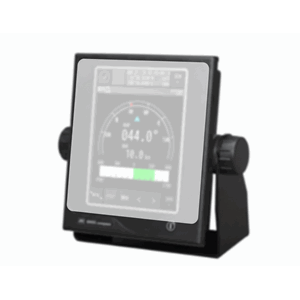

NB. Bord brakett er tilbehør.

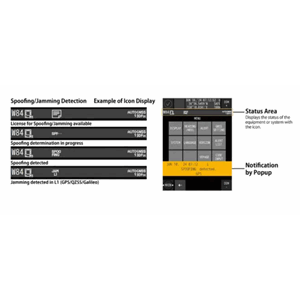

I tillegg kan nye JLR-41 nå detektere og varsle forsøk på spoofing og jamming-forsøkt. Krever egen tilleggslisens.

Receiver System	GPS / Galileo / GLONASS / BeiDou / QZSS
Receiver Type	GPS+QZSS: 15 ch SBAS: 1 ch Galileo + GLONASS or Galileo + BeiDou: 10 ch
Receiving Frequency	1575.42 MHz (GPS / Galileo / SBAS / QZSS) 1598.063 - 1605.375 MHz (GLONASS) 1561.098 MHz (BeiDou)
Course Accuracy	0.25° RMS
Attitude Accuracy (Roll)	0.4° RMS
Attitude Accuracy (Pitch)	0.4° RMS
Attitude Accuracy (Heaving)	5 cm RMS
Course Resolution	0.1° / 0.01°
Speed Resolution	0.1 kn / 0.01 kn
Attitude Resolution	0.1°
Tracking Rate of Turn	45°/sec
Start-up Time	Less than 2 minutes (warm start fix, typically 30 seconds)
SBAS Receiver	WAAS, MSAS, EGNOS
Positional Accuracy	Multi-GNSS (PPP positioning) : 1.8 m (2DRMS) (HDOP ? 4 SA OFF) Multi-GNSS (non-PPP positioning) : 4 m (2DRMS) DGPS : 4 m (2DRMS) SBAS : 4 m (2DRMS) GPS or GPS + QZSS : 5 m (2DRMS) GLONASS : 10 m (2DRMS) Galileo : 6 m (2DRMS) BeiDou : 10 m (2DRMS)
Spoofing/Jamming	Can be detected (license require)

Display Unit	6.5-inch TFT color touch panel LCD, 640x480 dots (VGA) / Brightness: 800 cd/m²
Display Modes	Heading, navigation information, plot, analog, highway, satellite information, waypoint information, beacon text, navigation aid
Power	12/24 VDC ( +30 %, -10 % )
Power Consumption	Less than 14 W ( including sensor )

Port	IEC 61162-1 : (input) 1 port, (output) 2 ports IEC 61162-2 : (output) 1 port LAN (IEC 61162-450) : 1 port Sensor through (IEC 61162-1) : (output) 2 ports Dry contact: (input) 1 port, (output) 3 ports
NMEA 0183 Version	Ver1.5 / 2.1 / 2.3 / 4.0
NMEA 0183 Input Sentence	ACK, ACN, DDC, HBT, POS
NMEA 0183 Output Sentence	AGL, ALC, ALF, ALR, ARC, DDC, DTM, GBS, GGA, GLL, GNS, GRS, GSA, GST, GSV, HBT, HDT, HRM, MSS, RMC, POS, ROT, THS, VTG, ZDA
